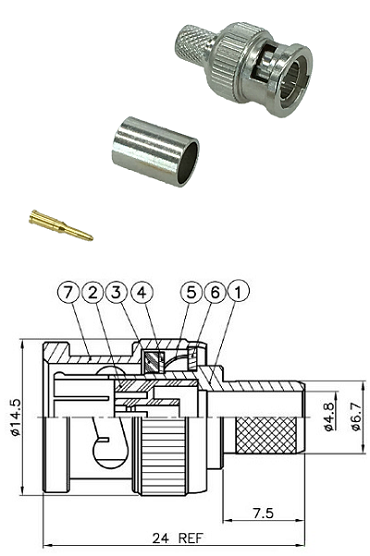

BNC Crimp Plug H124

(Code: 211-10H4-061)
Add to Enquiry List
 BNC Crimp Plug H124 Materials & Plating
Body - Brass, Nickel Plated
Insulator - Delrin, White
Gasket - PVC, Red
C washer -  Steel, Nickel Plated
Spring - SK-5, Nickel Plated
Washer - Steel, Nickel Plated
Shell - Zinc Alloy, Nickel Plated
Contact Pin - Brass, Gold Plated
Ferrule - Brass,Nickel Plated

Assembly

Crimped Ferrule Hex Crimp Size .305"
Crimped Contact Pin Hex Crimp Size .068"
