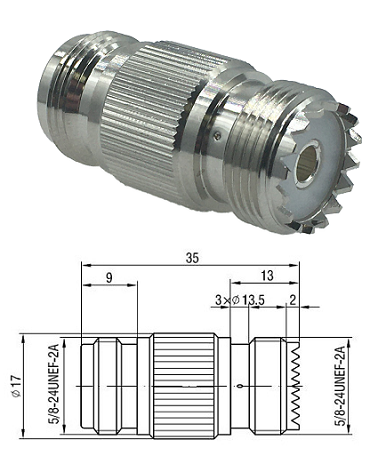

N Type Female - UHF Female

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Silver Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 300GHz

Dielectric Withstanding Voltage - 750V(RMS)

Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - N:5/8-24UNEF-2B, BNC:bayonet lock

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
