1.0/2.3 Bulkhead Crimp Jack RA7000, ST121

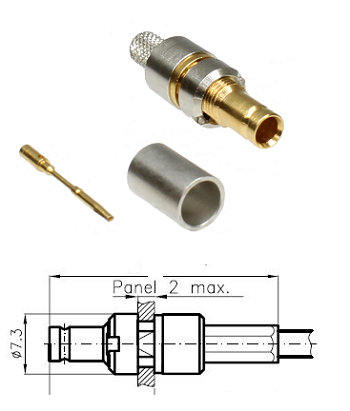

Drawing

L= 28 mm



Materials & Plating

Body - CW 614 N (UNI EN  12164) Gold  Plated

Socket inner contact - Beryllium Copper, Gold Plated

Insulator - PTFE

Other Metal Parts - CW 614 N (UNI EN 12164) Nickel Plated

Crimping Ferrules - Soft Copper, Nickel Plated



Electrical Characteristics

Impedance - 75ohm

Frequrncy Range - 0-2 GHz



Mechanical Characteristics

As per CEI CECC EN 122230 Type B,C,D



Environmental Characteristics

Temperature Range: 40°C to +85°C



Assembly

Pin:1.2 mm hex

Outer: 5.41 mm hex
