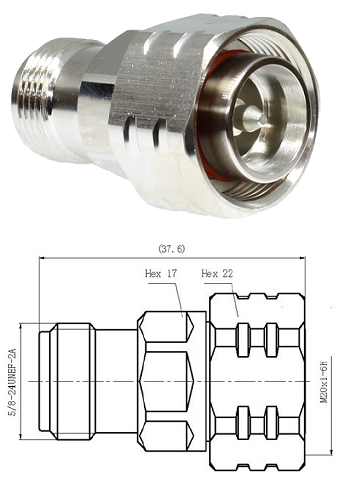

4.3/10 Male - N Female (37.6mm)

Materials & Plating

Body - Brass, Try-Alloy

Insulator - PTFE

Center conductor - Phosphor Bronze, Gold Plated

Electrical Characteristics

Characteristic Impedance- 50 ohm

Frequency Range Max. - DC - 6GHz

VSWR - ≤1.10

Dielectric Withstanding Voltage - ≥2500V RMS, 50Hz, at sea level

Dielectric Resistance - ≥5000MΩ

Contact Resistance -Outer contact≤1mΩ; Center Contact≤1.0mΩ

Insertion loss - ≤0.1dB

PIM3 - ≤-160dBc

Mechanical Characteristics

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: --40℃～+85℃
