Arrestor 21A

Name: Arrestor 21A
SKU: 501-1012-120
Availability: InStock

(Code: 501-1012-120)

Add to Enquiry List

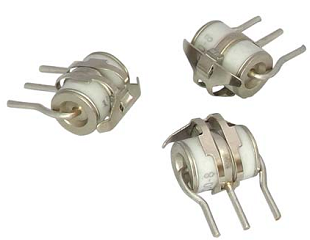

Gas Arrestor

This 3 pole over-voltage gas discharge tube (GDT) with fail safe is designed to fit into 5B type protection
magazines and protect telephone circuits.

Features
• Fits into standard 3 pole magazines (BT description "protector mounting 5B”)

• Manufactured to BT standard 21A, with a lower spark over-voltage than previous versions (e.g, 14A and 14A/1)

• Lower spark over-voltage offers circuits greater protection while still allowing plenty of headroom above standard telecoms voltage

Specifications
Totally non-radioactive over-voltage protection
Very high current handling capabilities
Designed to perform to ITU (formerly CCITT) K12
DC sparkover voltage: 150 – 250V
Minimum insulation resistance : 1000μΩ @ 100VDC
Maximum impulse sparkover voltage: 450V @ 1KV/ μS
Maximum capacitance: 1.5pF @ 1μHz bias Ø VDC line to ground
Minimum handover voltage: 100V (using ITU K12)
Packaging
In trays of 100 then in cartons of 500
