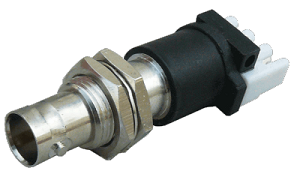

| Electrical Data |
| Matching Impedance |
75 ohm unbalanced coaxial to 120 ohm balanced twisted pair |
| Bit Rates |
2Mbit/s and 8Mbits as ITU-T Recommendation G.703 Line Code |
| Return Loss |
2Mbit/s exceeds G.703 requirments (>25dB@51 to 3072kHz)
8Mbit/s as per G.703 requirements |
| Insertion Loss |
<0.16dB for 2Mbit/s service (51 to 3072MHz)
<0.3dB for 8Mbit/s service (211kHz to 12.672MHz) |
| Cross Talk |
>80dB from 51kHz to 12.672MHz between two baluns mounted 20mm apart |
| Pulse Shape |
2Mbit/s and 8Mbit/s as per G.703 |
| Insolation Voltage |
250V DC for one minute between windings |
| Signal Level |
2.37V nominal peak voltage for 2Mbit/s and 8Mbit/s at the coaxial end as per G.703 |
| Material Data |
| Coax Connector Body |
Brass Alloy. Finish Cu/Ni |
| Coax Connector Insulator |
PTFE |
| Coax Connector Inner Contact |
Phosphor Bronze. Finish Cu/Ni |
| Coax Connector Body and Nut |
Brass Alloy. Finish Body Cu/Ni, Nut Cu/Ni |
| Outer Sleeve and Base Moulding |
ABS: Black |
| Terminal |
PBT: White |
| Coaxial Connector (75 ohm) |
| BNC |
To IEC 169-8 |
| Environmental Data |
| Working Temperature |
-30° C to 75° C |
| Also Available |
| AC&E Model B13019010, 2/8mb, stock code: 260-1903-006
AC&E Model B04019010, 2/8/34mb, stock code: 261-1903-006 |
|
