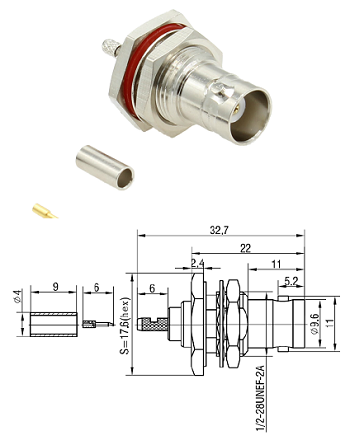

BNC Bulkhead Crimp Jack RG178, RG196

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Bronze, Gold Plated

Insulator - PTFE

NUT - Brass, Nickel Plated

Spring Contact - Phosphor Bronze, Nickel Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 2GHz

Dielectric Withstanding Voltage - 1500V (RMS)

Contact Resistance - Centre ≤ 1.5mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - Snap-on coupling

Durability - ≥500 cycle

Environmental Characteristics

Temperature Range: -  40°C to +85°C

Assembly

Pin: 1.06 mm hex

Outer: 3.25 mm hex
