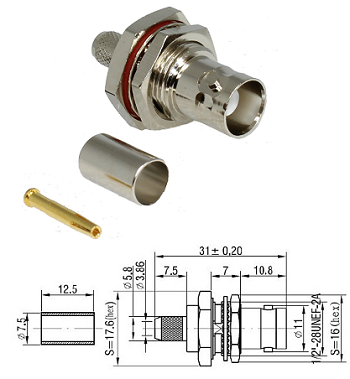

BNC Bulkhead Crimp Jack RG59

Materials & Plating

Shell/Body - Brass, Nickel Plated

Contact Socket - Bronze, Gold Plated

Insulator - PTFE

Crimp Ferrule - Brass, Nickel Plated



Electrical Characteristics

Impedance - 75 ohm

Frequency Range Max. - DC - 2GHz

Dielectric Withstanding Voltage - 1500V (RMS)

Contact Resistance - Centre ≤ 1.5mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 5000mΩ



Mechanical Characteristics

Mating - bayonet lock

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 40°C to +80°C



Assembly

Pin: 1.72 mm hex

Outer: 6.48 mm hex
