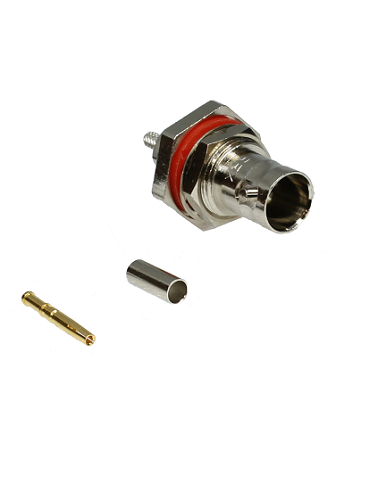

BNC Bulkhead Crimp Jack (Saturn)

Brand: Amphenol

Model: B6421G2-003-ND3G-50



Material & Plating

Body - Brass, Nickel Plated

Insulator - TEFLON, Natural

Contact Pin - Phosphor Bronze, Gold Plated

Barrel - Brass, Nickel Plated

Ferrule - Copper, Nickel Plated

Gasket - Silicon, Red

Lock Washer - Brass, Nickel Plated

Hex Nut - Brass, Nickel Plated

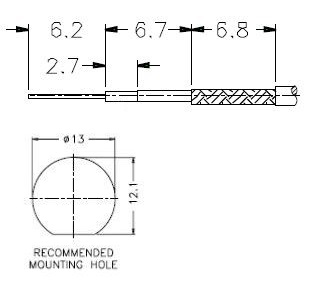

Assembly

Pin: 1.46 mm hex

Outer: 3.25 mm hex
