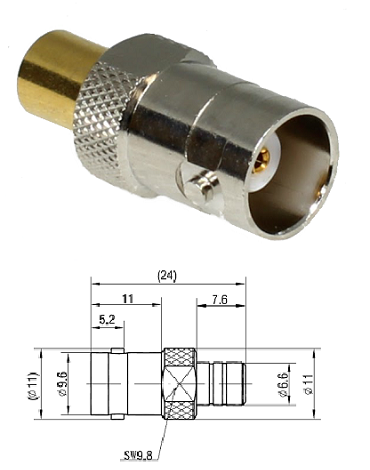

BNC Jack - SMB Plug Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Phosphor Bronze, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 2GHz

Dielectric Withstanding Voltage -1000V (RMS)

Contact Resistance - Centre ≤ 6mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating -  SMB: Snap-on coupling  BNC: bayonet lock

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: -  55°C to +155°C
