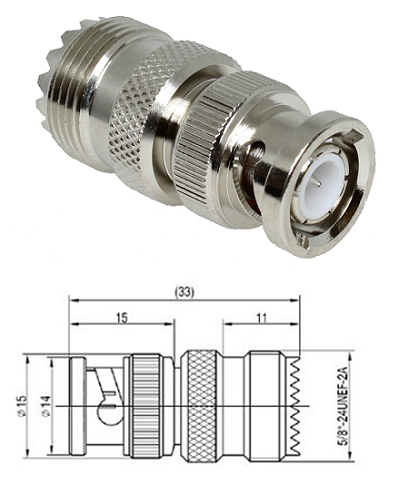

BNC Plug to UHF Jack Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Silver Plated

Insulator - ABS

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 300GHz

Dielectric Withstanding Voltage - 750V (RMS)

Contact Resistance - Centre ≤ 5mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - BNC:bayonet lock UHF:5/8-24UNEF-2B

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
