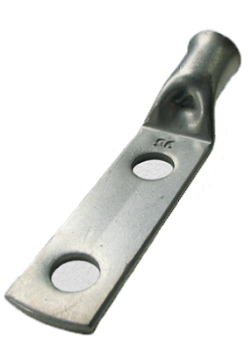

Application
Un-insulated heavy duty terminals suitable for power cables up to 1000 volts
Material
Manufactured from seamless copper tube to BS EN12449:1999
Finish
Electro Tin plated to BS 1872:1974
• All terminals are manufactured from 99 .5% copper and fully annealed to ensure optimum ductility to avoid severe deformation such as cracking and splitting when crimped.
• Terminals are supplied with an inspection window which enables the user to ensure full and correct insertion of the conductor and a flared entry ensures a smooth transition from terminal to conductor.
• Internal barrel diameters suit standard cables as defined in BS 6360.
• All terminals are identified on the palm with cable size (and stud hole size) to ensure correct selection of the appropriate tool and dies.
Alternative stud hole sizes, hole centres, and blank palms are available to special order.
***Larger sizes available on request***
| |
|
|

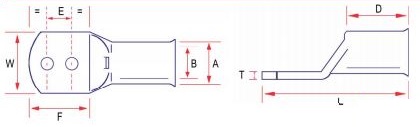

Dimensions in mm |
| Stock Code |
Cond. Size (mm²) |
Stud Hole |
A |
B |
W |
E |
F |
D |
L |
T |
| 410-10-6POI |
10 |
6 |
6.9 |
4..6 |
11.0 |
16.0 |
34.0 |
10.0 |
50.0 |
2.0 |
| 410-16-6POI |
16 |
6
|
8.0 |
5.6 |
11.0 |
16.0 |
34.0 |
11.0 |
52.0 |
2.2 |
| 410-25-6POI |
25 |
6 |
9.5 |
7.0 |
13.5 |
16.0 |
34.0 |
13.0 |
56.0 |
2.4 |
| 410-35-6POI |
35 |
6 |
11.0 |
8.2 |
15.5 |
16.0 |
34.0 |
18.0 |
57.0 |
2.8 |
| 410-50-6POI |
50 |
6 |
11.9 |
9.5 |
17.0 |
45.0
|
75.0 |
18.0
|
83.0 |
2.5 |
| 410-70-12POI |
70 |
12.5 |
15.0 |
11.5 |
21.2 |
45.0
|
75.0
|
18.0
|
105.0 |
2.0 |
| 410-95-12POI |
95 |
12.5 |
17.0 |
13.5 |
24.3 |
45.0 |
75.0
|
24.0 |
111.0 |
3.5 |
| 410-120-12POI |
120 |
12.5 |
19.0 |
15.0 |
27.2 |
45.0
|
75.0
|
27.0 |
115.0 |
4.0 |
| 410-150-12POI |
150 |
12.5 |
21.0 |
16.5 |
30.0 |
45.0
|
75.0
|
27.0 |
120.0 |
4.5 |
| 410-185-12POI |
185 |
12.5 |
23.0 |
18.5 |
33.5 |
45.0
|
75.0 |
30.0 |
125.0 |
4.5 |
|
