Features

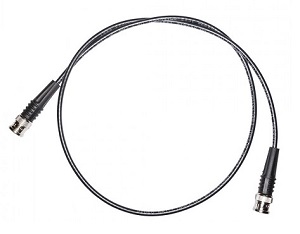

Belden 1855A Black HD-SDI Cable assembly - length 0.25M
Suitable for SDI and HD-SDI applications (SMPTE 292M/372Mand SMPTE 242M)
Black PVC Jacket
BNC Plug to BNC Plug
True 75 Ohm Connectors
Black Boots (Other colours to order)
Labelling Option
| Stock Code |
Length |
Stock Code |
Length |
| 301-CAS1463-0.25M |
0.5m |
301-CAS1463-5M |
5m |
| 301-CAS1463-0.4M |
0.4m |
301-CAS1463-7M |
7m |
| 301-CAS1463-0.5M |
0.5m |
301-CAS1463-10M |
10m |
| 301-CAS1463-1M |
1m |
301-CAS1463-15M |
15m |
| 301-CAS1463-1.5M |
1.5m |
301-CAS1463-20M |
20m |
| 301-CAS1463-2M |
2m |
301-CAS1463-25M |
25m |
| 301-CAS1463-3M |
3m |
301-CAS1463-30M |
30m |
| 301-CAS1463-4M |
4m |
301-CAS1463-40M |
40m |
Introduction
HD-SDI patch cables using BELDEN 1855A 6GHz cable and precision BNC plugs. These HD-SDI patch leads are assembled in the UK under a proven quality control system.
Belden 1855A is a small diameter precision video cable (OD4.04mm) suitable for composite, component, widescreen and HD applications Belden 1855A is suited to both analogue and Digital broadcast signals.
Recommended maximum transmission distance
Application
1. SMPTE ST259 (SD-SDI) 360Mb/s
2. SMPTE ST292 (HD 1.5G-SDI) 1.5Gb/s
3. SMPTE ST424 (HD 3G-SDI) 3Gb/s
Recommended maximum transmission distance
SMPTE ST259 - Distance is based on 30dB loss at ½ clock frequency according to Belden data sheets
Maximum distance is 207M
SMPTE ST292 & ST424 - Distance is based on 20dB loss at½ clock frequency according to Belden data sheets
SMPTE ST259 - Distance is based on 30dB loss at ½ clock frequency according to Belden data sheets
Maximum distance is 207M
SMPTE ST292 & ST424 - Distance is based on 20dB loss at½ clock frequency according to Belden data sheets
HD-1.5Gb/s - maximum distance is 66M
HD-3Gb/s - maximum distance is 46M
Options
Coloured strain relief boots (standard is Black)
Cable labels
Cable length
Summary
SDI / HD-SDI patch lead for Analogue and Digital signals
Belden 6GHz precision video cable
Precision "true" 75Ohm BNC connectors
Black strain relief boots
Options - cable length, labels, coloured boots
