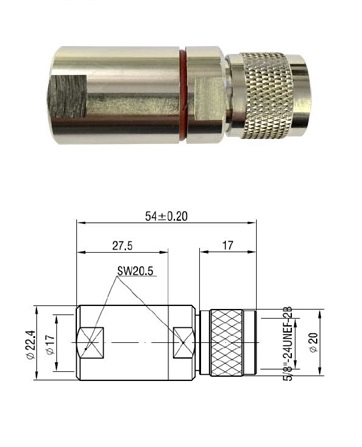

N Type Straight Clamp Plug for 1/2" Cable (54mm)

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Phosphor/Bronze, Gold Plated

Insulator - PTFE/PE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1500V (RMS)

Contact Resistance - Centre 1mΩ, Outer 1mΩ

Insulation Resistance - 5000mΩ

Mechanical Characteristics

Mating - 5/8-24UNEF-2B

Durability - 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
