Power Splitter (Wilkinson Model, 698-2700MHz, 50W, SMA Female 3-Way )

(Code: MPS-727-03-SMAF)
 Add to Enquiry List
Power Splitter (Wilkinson Model, 698-2700MHz, 50W, SMA Female 3-Way )


 Product Features
 Wide Frequency Band 698-2700MHz
 2G/3G/4G/LTE Coverage
 Low Insertion Loss
 Low VSWR
 Indoor Application IP60
 Widely used for in building Solution

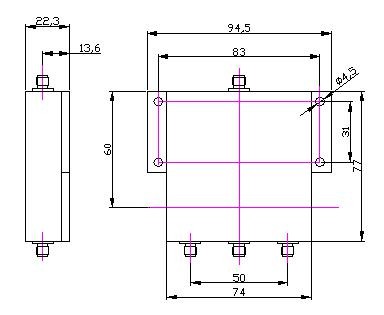

 Technical & Mechanical Specifications
 Freq (MHz)  698-2700
 Split Loss (dB)  4.8
 IL (dB)  ≤0.9
 Isolation (dB)  18 min
 VSWR  ≤1.30
 Total Input Power (W)  50
 Impedance  50 ohm
 Connector  SMA-female
 Colour  Black
 Temp (deg)  -30~+70
 Weight (KG)  0.30
 Application  Indoor IP60
